Villaboard 3000 x 1200 x 9mm Lining

V91230

Villaboard 3000 x 1200 x 9mm Lining

$117.28 Incl. GST (each)

Quantity

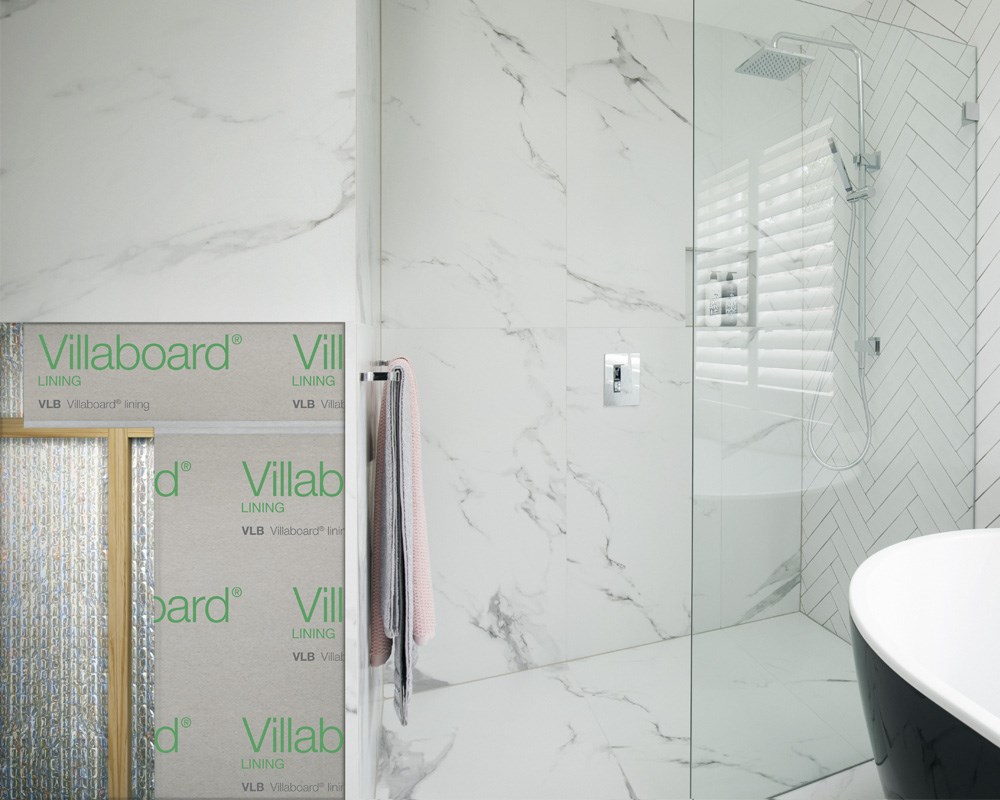

An internal wall and ceiling lining designed specially for bathrooms, laundries, kitchens and high-traffic areas in residential, medium-density and commercial buildings. It can be used on either timber or light gauge steel framed buildings.

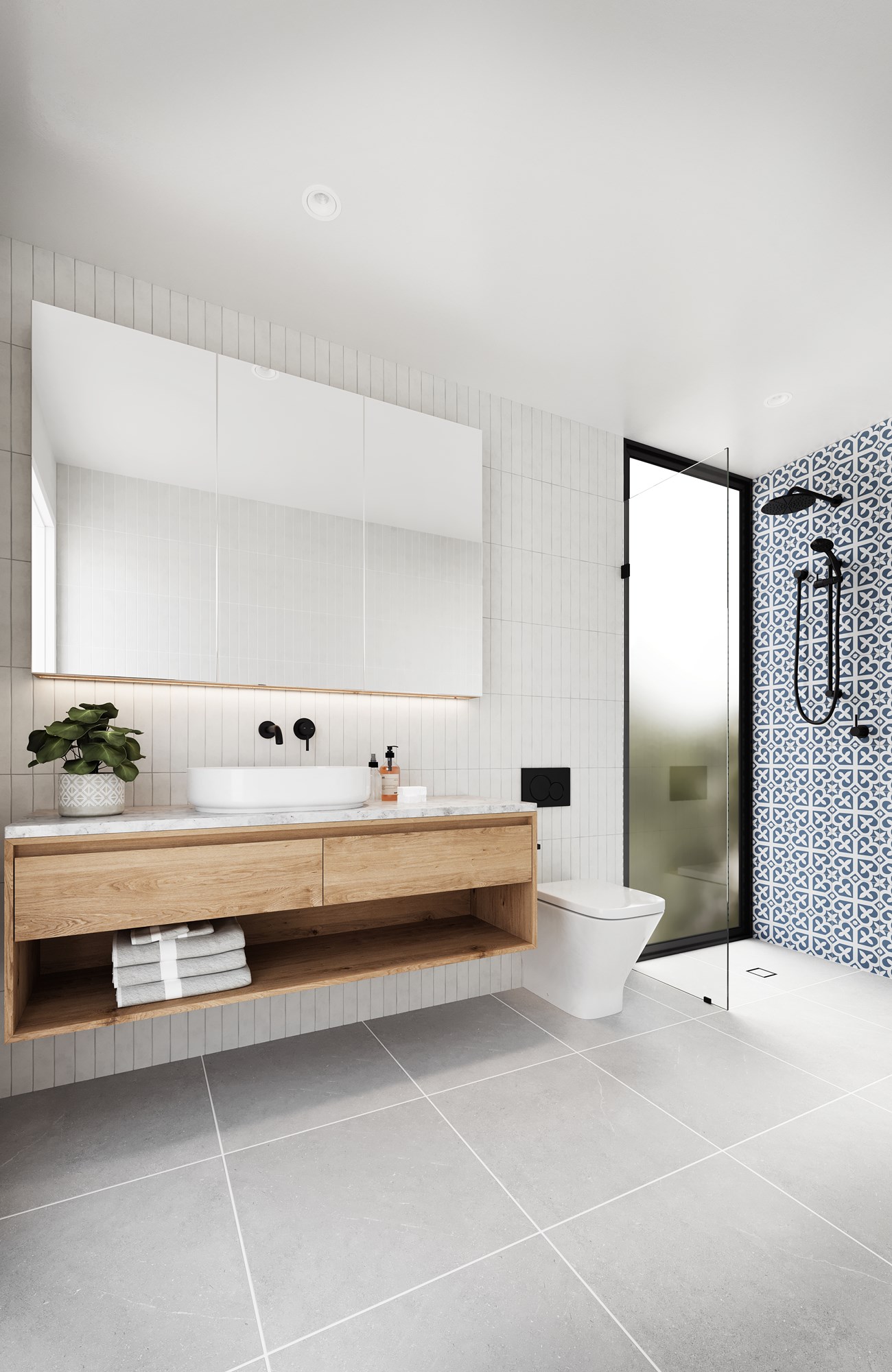

Designed for Bathrooms. A seamless flat, internal wall or ceiling lining that can be painted, wallpapered or partly/fully tiled to create a wide range of design looks.



  • Because of its composition, Villaboard lining has a much greater tensile bond strength than plasterboard, which means you can use thicker tiles higher on the wall. It is up to 75% greater than wet area plasterboard when dry, and 300% greater when wet.
  • The high impact resistance of Villaboard lining, compared to plasterboard, makes it the smart choice for high-traffic areas that are prone to wear and tear. To add to this, if a tiler makes a mistake when tiling, the homogeneous nature of Villaboard lining means they can chip the back of the tile off without damaging the substrate.
  • Up to 60 minutes Fire Rating when used with HardieSmart™ wall systems*
  • It’s suitable for use as internal bracing.*
  • The key requirement of linings used in wet areas is superior resistance to moisture damage in the event that the material gets wet. Reduced tile adhesion is one of the main problems moisture penetration causes. Made from James Hardie fibre cement, Villaboard lining is homogeneously resistant to moisture damage, which means that even if the materials does get wet, it won’t deform or lose its structural integrity, like many other materials.** In both commercial and residential applications, this means less call backs for costly rectifications resulting from moisture damage. To add to this, independent tests on Villaboard lining, conducted in accordance with ASTM D3273-00, concluded that there was no mould growth and resulted in a perfect rating of 10. Villaboard lining is resistant to damage from termites, rot and fire.**
  • Specifications
  • Downloads

CodeV91230
Length3000 mm
Width1200 mm
Thickness9 mm
Weight50.19 kg
 M² per Sheet3.6 m²



Name Description Size
villaboard installation guide.pdf villaboard installation guide 1.46 MB
villaboard physical properties.pdf villaboard physical properties 34 Kb
villaboard mould resistance.pdf villaboard mould resistance 53 Kb
villaboard warranty.pdf villaboard warranty 85 Kb
best practice.pdf best practice 324 Kb
fire rated application guide.pdf fire rated application guide 1.11 MB
fire rated technical specification.pdf fire rated technical specification 1.80 MB
james hardie product brochure.pdf james hardie product brochure 6.60 MB
james hardie product guide.pdf james hardie product guide 6.85 MB
wet area construction guide.pdf wet area construction guide 8.29 MB
bracing design guide.pdf bracing design guide 3.18 MB
hardie_fibre_cement_products_sds_apr22.pdf james hardie fibre cement sds 155 Kb
